Steel Grating Stair Treads: Specifications, Safety Requirements and Installation Guide
Introduction
Steel grating stair treads are an important component of steel stairways used in industrial plants, commercial buildings, construction projects, and infrastructure facilities.
Unlike ordinary solid steel steps, grating stair treads feature an open-grid structure that provides excellent load-bearing capacity, drainage, ventilation, and slip resistance.
However, choosing the right stair tread is not simply about selecting a suitable size. Factors such as tread width, bearing bar dimensions, load requirements, anti-slip design, fixing method, and installation conditions should all be considered.
So, how do you choose the right steel grating stair treads for your project?
What Are Steel Grating Stair Treads?
Steel grating stair treads are prefabricated grating panels designed specifically for use on steel stairways.
They are typically manufactured by welding bearing flat bars and cross bars into a rigid grating structure. Depending on the application, the finished stair treads can be supplied with:
- Hot-dip galvanized surfaces
- Painted or powder-coated finishes
- Serrated anti-slip surfaces
- Front nosing
- Pre-drilled fixing holes
- Customized dimensions
The open structure allows water, snow, dirt, and debris to pass through the grating, making these stair treads particularly suitable for outdoor and industrial environments.
Common Steel Grating Stair Tread Specifications
Different projects require different tread dimensions and load capacities.
The following are common configurations for reference:
| Model | Tread Width | Bearing Bar Specification | Typical Application |
|---|---|---|---|
| T1 | 200 mm | 30 × 3 mm | Light-duty stairs, indoor use |
| T2 | 230 mm | 32 × 5 mm | General stairs, outdoor use |
| T3 | 250 mm | 40 × 5 mm | Heavy-duty stairs, industrial plants |
| T4 | Customized | Customized | Special project requirements |
These specifications are typical configurations rather than universal standards. The final tread dimensions should be determined according to the stair width, support span, design load, applicable standards, and project requirements.
How to Choose the Right Stair Tread?
1. Consider the Load Requirements
The first factor to consider is the expected load.
A staircase in an office or indoor facility may only need to withstand normal pedestrian traffic. In contrast, stairs inside a factory may be exposed to:
- Heavy equipment
- Frequent traffic
- Tools and materials
- Industrial loads
- Outdoor weather conditions
For heavier applications, a larger and thicker bearing bar can provide greater structural capacity.
For example, a 40 × 5 mm bearing bar configuration may be considered for heavy-duty industrial stair applications, subject to the required span and load calculation.
2. Select the Appropriate Tread Width
Tread width affects both walking comfort and staircase design.
Common tread widths include:
- 200 mm – compact or light-duty stairways
- 230 mm – general-purpose applications
- 250 mm or wider – industrial and heavy-duty applications
Custom widths can also be manufactured according to project drawings.
For commercial and industrial projects, the final stair geometry should comply with the relevant local building and safety requirements.
Safety Features of Steel Grating Stair Treads
Safety is one of the most important considerations when selecting stair treads.
1. Front Nosing
A front nosing can be installed along the front edge of the stair tread.
Its functions include:
- Improving visibility of the step edge
- Providing additional foot support
- Reducing the risk of slipping forward
- Protecting the edge of the grating
For specific projects, the nosing dimensions should be determined according to the applicable design standard.
2. Serrated Anti-Slip Surface
For outdoor stairs or areas frequently exposed to water, oil, snow, or other contaminants, serrated bearing bars can significantly improve slip resistance.
The serrated surface provides additional contact points between footwear and the tread.
This makes serrated steel grating stair treads especially suitable for:
- Factories
- Construction sites
- Outdoor platforms
- Wastewater treatment plants
- Chemical facilities
- Mining facilities
- Marine environments
For particularly demanding environments, the anti-slip design should be selected based on actual site conditions.
Pre-Drilled Holes for Easy Installation
Steel grating stair treads can be supplied with pre-drilled fixing holes at both ends.
These holes allow the tread to be secured directly to the supporting steel stringers using bolts.
The advantages include:
- Fast installation
- Easy replacement
- Convenient maintenance
- No additional drilling on site
- Suitable for modular stair systems
For projects where future maintenance or replacement is expected, bolted stair treads can provide greater flexibility.
Two Common Installation Methods
Steel grating stair treads are generally installed using either welding or bolting.
Welding Installation
The stair tread is directly welded to the supporting steel structure.
Advantages:
- Strong and rigid connection
- Simple construction
- Good long-term stability
- Suitable for permanent stairways
Welded installation is commonly used in industrial plants and fixed steel structures where the stair treads are not expected to be removed frequently.
Bolted Installation
The stair tread is secured to the steel stair stringers using bolts through the pre-drilled mounting holes.
Advantages:
- Easy to install
- Easy to remove
- Convenient replacement
- Suitable for maintenance-intensive facilities
- No cutting or welding required during replacement
Bolted installation is particularly useful for modular stair systems or projects where future modification may be required.
Why Choose Steel Grating Stair Treads?
Compared with solid steel steps, grating stair treads offer several practical advantages.
Excellent Load-Bearing Performance
The welded grating structure provides strong support while keeping the overall weight relatively low.
Excellent Drainage
The open-grid design allows rainwater, snow, and other liquids to pass through instead of accumulating on the walking surface.
Improved Ventilation
The open structure allows air to circulate freely, making grating stairs suitable for industrial facilities and platforms.
Slip Resistance
Serrated surfaces can provide additional traction in wet or contaminated environments.
Easy Maintenance
Damaged or worn stair treads can be individually removed and replaced, particularly when bolted connections are used.
Corrosion Protection
For outdoor and industrial applications, hot-dip galvanized steel grating stair treads provide enhanced corrosion resistance and longer service life.
Where Are Steel Grating Stair Treads Used?
Steel grating stair treads are widely used across different industries.
Industrial Facilities
- Manufacturing plants
- Steel mills
- Power plants
- Chemical plants
- Mining facilities
Infrastructure

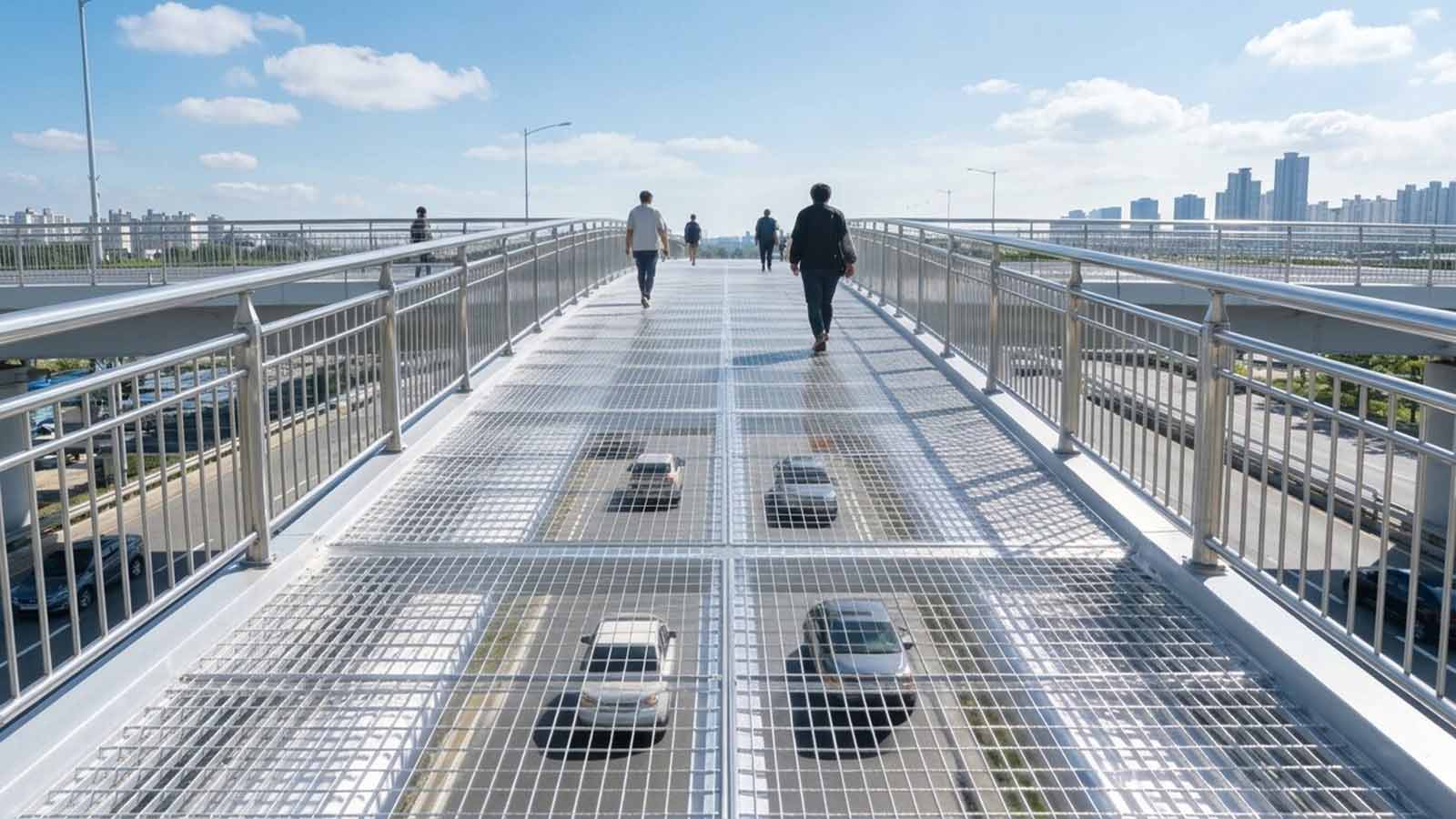

- Bridges
- Municipal facilities
- Water treatment plants
- Transportation facilities
Commercial and Construction Projects
- Commercial buildings
- Parking structures
- Construction sites
- Industrial warehouses
Outdoor Applications
- Access platforms
- Fire escape stairs
- Maintenance stairs
- Rooftop access stairs
Their combination of strength, drainage, ventilation, and easy maintenance makes them particularly suitable for demanding environments.
How to Order the Right Steel Grating Stair Treads?
When requesting a quotation from a steel grating manufacturer, it is helpful to provide the following information:
1. Stair tread length
The distance between the supporting structures.
2. Tread width
The required walking depth.
3. Bearing bar size
For example, 30 × 3 mm, 32 × 5 mm, or 40 × 5 mm.
4. Bearing bar spacing
The center-to-center spacing between load-bearing bars.
5. Surface treatment
For example:
- Black steel
- Hot-dip galvanized
- Painted
- Stainless steel
6. Anti-slip requirement
Specify whether serrated bearing bars are required.
7. Installation method
Choose between welded or bolted installation.
With these details, the manufacturer can recommend a suitable configuration and prepare accurate drawings and quotations.
Conclusion
Steel grating stair treads are more than simple steps. They are engineered structural components that combine load-bearing capacity, slip resistance, drainage, ventilation, and convenient installation.
For light-duty indoor stairs, compact configurations may be sufficient. For industrial environments, heavier bearing bars and serrated surfaces may provide better performance.
Most importantly, the tread size and grating specification should always be selected according to the actual span, design load, installation conditions, and applicable safety standards.
Whether you need standard stair treads or fully customized grating steps, choosing the right configuration at the design stage can improve both safety and long-term performance.
