Types of Press-Locked Steel Grating: Features, Applications, and Uses

Press-locked steel grating, also known as swage-locked steel grating or press-locked grating, is manufactured by inserting and mechanically locking cross bars into bearing bars. Depending on the cross bar design, insertion method, and angle, press-locked steel grating can be divided into several common types, including standard press-locked grating, heavy-duty press-locked grating, integral press-locked grating, and louver-type grating.

1. Standard Press-Locked Steel Grating

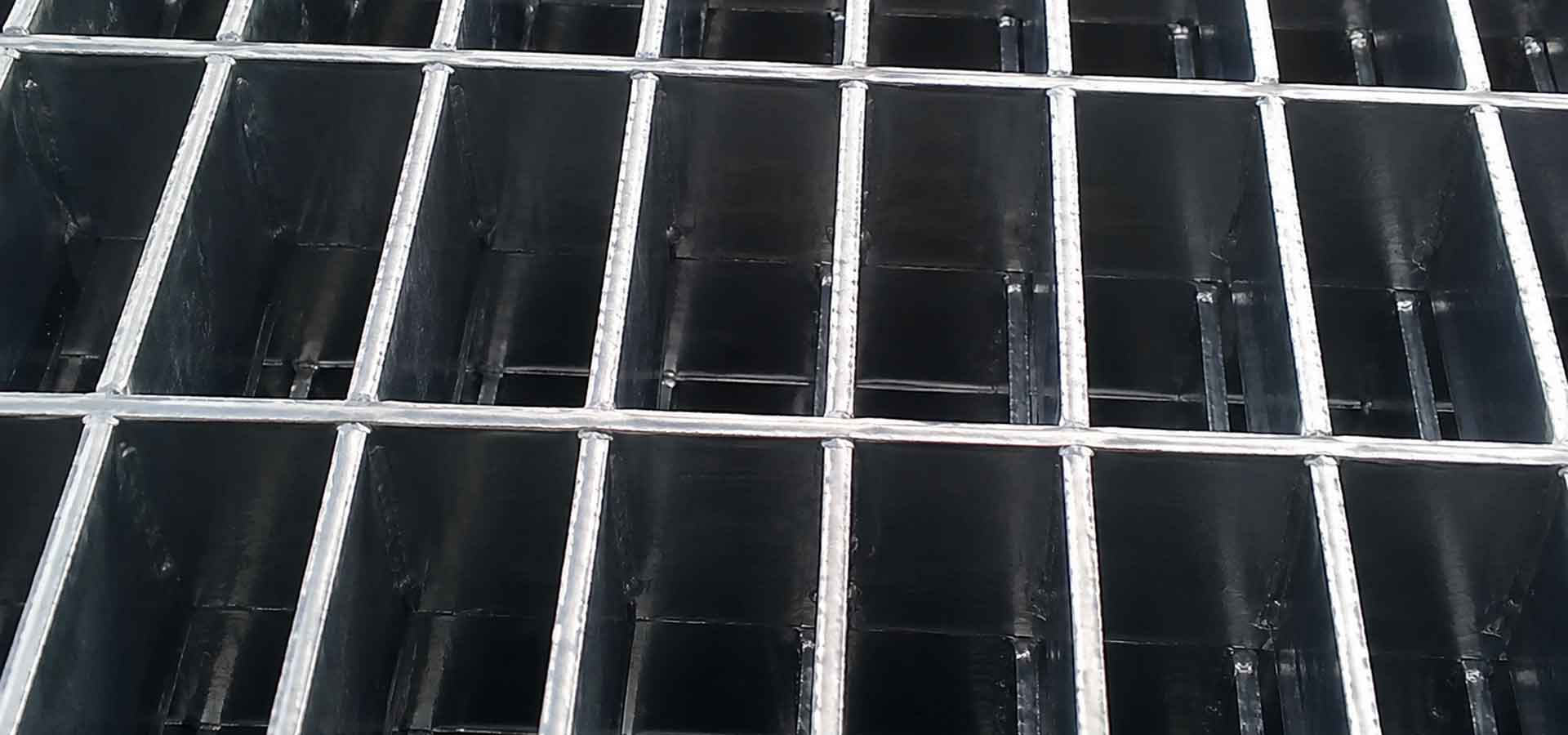

Standard press-locked steel grating is manufactured by cutting slots into the bearing bars and then pressing the cross bars into the slots to form a secure mechanical connection.

This manufacturing process creates a strong and uniform grid structure without relying primarily on welding. Standard press-locked grating is commonly produced with bearing bar heights of up to approximately 100 mm, while panel lengths are generally less than 2,000 mm, depending on the manufacturing equipment and project requirements.

Press-locked grating provides a clean appearance, uniform openings, and good structural stability, making it suitable for both functional and architectural applications.

2. Heavy-Duty Press-Locked Steel Grating

Heavy-duty press-locked steel grating is manufactured using larger bearing bars and cross bars that are mechanically interlocked with each other.

Compared with standard press-locked grating, the heavier bearing bars provide greater load-bearing capacity, making this type of grating suitable for large spans, heavy loads, and demanding industrial applications.

Heavy-duty press-locked grating can be used for industrial platforms, heavy-duty walkways, equipment access areas, and other locations where higher structural strength is required.

3. Integral Press-Locked Steel Grating

Integral press-locked grating features a highly rigid structure in which the bearing bars and cross bars are tightly mechanically connected.

Its strong overall construction provides good stability and resistance to deformation. This makes it suitable for applications where both structural performance and a neat appearance are important.

Depending on the design, integral press-locked grating can be customized in terms of bearing bar dimensions, spacing, panel size, and surface treatment.

4. Louver-Type Press-Locked Grating

Louver-type press-locked grating uses specially arranged bearing bars or cross bars to create a louver-like appearance.

The structure can provide a combination of ventilation, light control, privacy, and visual screening, making it particularly suitable for architectural and decorative applications.

It can be used for ceilings, facades, screens, ventilation openings, and other applications where both functionality and appearance are important.

Applications of Press-Locked Steel Grating

Thanks to its attractive appearance, uniform openings, strong mechanical connections, and flexible design, press-locked steel grating is widely used in both industrial and architectural projects.

Common applications include:

• Industrial plant platforms
• Factory walkways
• Commercial building ceilings
• Interior and exterior architectural decoration
• Pedestrian walkways
• Ventilation openings and grilles
• Drainage and access covers
• Advertising and display structures
• Stair treads
• Service platforms
• Theater and shopping mall interiors
• Subway and railway infrastructure

Press-locked grating is particularly popular in applications where a clean, uniform appearance is required in addition to structural performance.

Why Choose Press-Locked Steel Grating?

One of the main advantages of press-locked steel grating is its combination of strength, appearance, flexibility, and functionality.

The mechanically locked structure provides a secure connection between the bearing bars and cross bars, while the uniform openings create a clean and modern appearance.

Compared with conventional solid flooring materials, the open-grid design also provides excellent ventilation, light transmission, and drainage.

For architectural applications, press-locked grating can be manufactured in different patterns and configurations to meet both engineering and aesthetic requirements.

Custom Press-Locked Steel Grating

Different projects have different requirements for load capacity, dimensions, spacing, materials, and surface treatment. Therefore, standard grating panels may not always be the most suitable solution.

As an experienced steel grating manufacturer, we can provide customized press-locked steel grating according to project drawings and technical specifications.

Customization options may include:

• Bearing bar size
• Cross bar size
• Bearing bar spacing
• Cross bar spacing
• Panel dimensions
• Special shapes and cut-outs
• Edge treatment
• Surface treatment
• Load-bearing requirements

Whether you need press-locked steel grating for an industrial platform, commercial building, walkway, ceiling, ventilation system, or architectural project, the right grating design can provide both reliable performance and an attractive appearance.

Conclusion

Press-locked steel grating is a versatile grating solution that combines mechanical strength with a clean and attractive appearance. Its different structural designs make it suitable for a wide range of industrial, commercial, architectural, and municipal applications.

From standard press-locked grating to heavy-duty and louver-type designs, each type can be selected according to the specific requirements of the project.

If you are looking for custom press-locked steel grating, provide us with your drawings, dimensions, load requirements, or application details. As a professional steel grating manufacturer and supplier, we can help you select the appropriate grating type and provide a customized solution for your project.
